15W mini solar light kits with leds and cables

FOB Reference Price:Get Latest Price
$20.00 - $50.00 / Sets | 100 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 500 >500
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 500 Sets)
Customized packaging (Min. Order: 500 Sets)

More

Graphic customization (Min. Order: 500 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SDX
Model Number:
SDX-S1509
Material:
Polycrystalline Silicon
Max. Power:
15W
Number of Cells:
1
solar panel:
15W poly panel
panel size:
355*350*18mm
battery:
12V/9AH lead acid battery
led:
2W/3W led bulb
light cable:
5M with switch
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
solar panel and solar system are packed separately.
solar panel:
1pcs/box,box size:375*370*50mm, 10box/carton, meas:425*420*550mm, NW/GW:14kg/15kg
solar system:
1pcs/box,box size:26.5*26*16cm,4sets/carton,meas:55*34*28.5cm
Port
shenzhen or HK
Lead Time :
Quantity(Sets) 1 - 500 >500
Est. Time(days) 20 To be negotiated

       15W mini solar light kits with leds and cables

15W/9Ah mini solar light kit is a set of DC power supplying system, designed especially for the users at remote and power shortage area, working at field, travel camping, also for the small DC power electricity supply.



SDX-S1509 mini solar light kits specification:

NO.parts namespecification
1solar panel18V/15W poly solar panel
2panel size350*355*18mm
3battery capacity12V/9AH lead acid battery
4controller12V/3A
5output5V/12V
6cable 2sets 5 meters with switch



mini solar light kits control panel:

mini solar light kit function:



A. With the monolithic processor as the major controller, this mini solar light kit effectively manages all charging processes. The key function of overcharge & over discharged protection can extend the life span of the battery. The processor protects against arcing during the low voltage conditions.



B.  The standby function: Following five minutes after startup, if no output loads are detected, the kit will automatically enter into a low power consumption standby mode.



C.USB output overload protection: The USB output will shut down automatically if the maximum output current exceeds 1000mA when charging for mobiles, MP3, and other rated 5V devices etc.



D. Overload protection: The output will shut down automatically when current exceeds 3 Amps



E. Independent Charging & Discharging: The kit can charge and discharge independently.



F. Load indicator: A battery indicator light will display red when charging, and green when the system is fully charged. When the mini solar light kit operates under low voltage, the indicator will be red.



G. This mini light kit can be charged by AC adapter.(note:The adapter should be designed specially for  charging lead acid battery,charge current should be lower than 2A)





mini solar light kit detailed picture:





A whole set mini solar light kit include:

1set * solar lighting kit

2pcs*3W led bulbs

2sets*5M cable with switch

1pcs*15W solar panel

1pcs*instruction manual



This mini solar light kit can be used to for fans,mobile charging and led lighting,we can offer you accessories according to your requirements





 we can offer DC led tube which can run on this mini solar light kit,low consumption

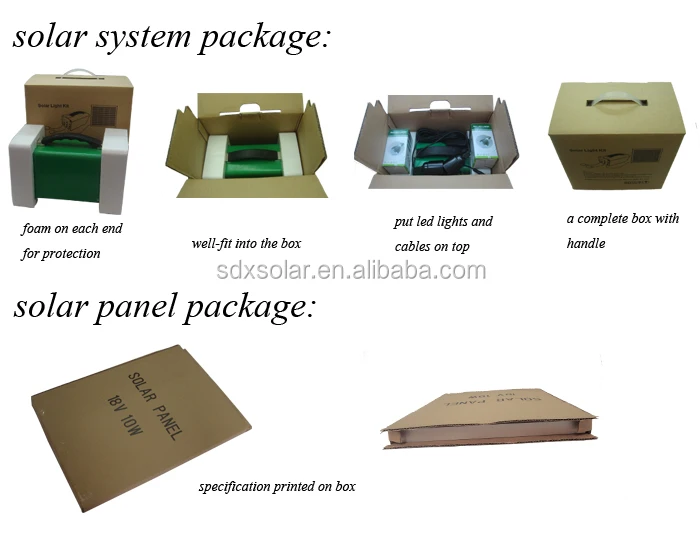

Packaging & Shipping

 solar panel and mini solar light kits are packed seperately







Company Information





FAQ

FAQ:



1.Q: Who are you?

A:Shenzhen SDX New Energy Technology Co., Ltd ,located in shenzhen Guangming new district,is a company integrating research, design and manufacturing of solar products.We are a hi-tech Enterprise which combines sales and manufacturing.



2.Q: What is the payment terms,delivery port and MOQ of products?

A: We can provide EXW,FOB,CRF and CIF price depends on your requests. The delivery port can be Shenzhen or Hongkong. We accept T/T ,L/C, western union, paypal,etc.



3 Q: Can I get some samples?

A: Yes,of course. We are honored to offer you samples,usually samples can be ready in 3~7 days.



4.Q:Can I order less than MOQ?

A:yes,you can.However,we will adjust price according to production cost.
