200W Solar agriculture water pump system for home use

FOB Reference Price:Get Latest Price
  • >=50 Sets
    $365.00
Lead Time:
Quantity(Sets) 1 - 50 >50
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 100 Sets)
Customized packaging (Min. Order: 100 Sets)

More

Graphic customization (Min. Order: 100 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SDX
Model Number:
SDX-S200120
Solar Power (W):
200W
Specification:
Normal
Application:
Home
Output Voltage (V):
220V/12V/5V
Load Power (W):
500W
Work Time (h):
10-50H
Solar panel:
2pcs 18V/100W solar panel
battery:
12V/120AH lead acid battery
controller:
30A
inverter:
500W pure sine wave
controller type:
PWM
load:
600W
dimension:
52*26.5*41cm
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
solar system:
1pcs/box,box size:60*32*47cm,NW/GW:42.5/45kg
solar panel:
103*53.5*8cm,NW/GW:16kg/18kg
Port
shenzhen or HK
Lead Time :
Quantity(Sets) 1 - 50 >50
Est. Time(days) 20 To be negotiated
Specification

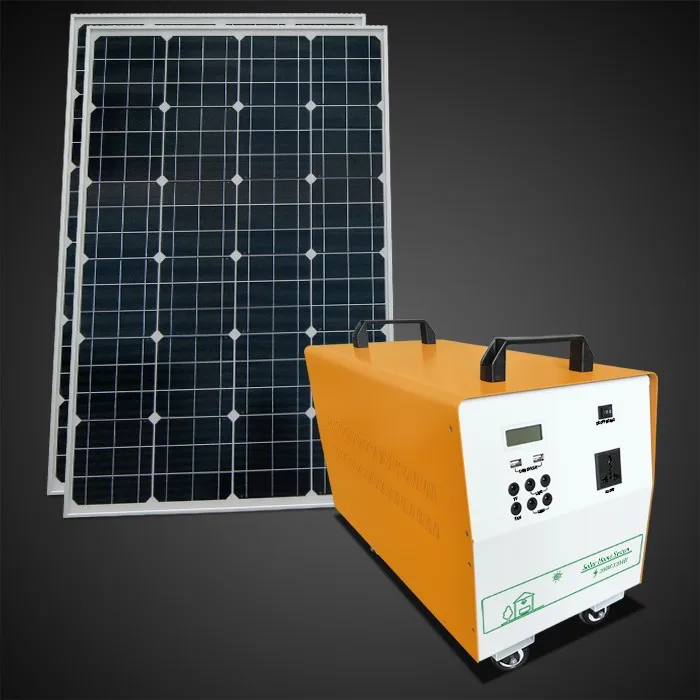

                          200W Solar agriculture water pump system for home use

It is a solar system which integrates home led lighting,DC appliances,mobile charging and solar water pump function.It can be used to power solar water pump less than 500W,great convinience for family irrigation.

Setting Information
model name
SDX-S200120
solar panel
200W
battery
12V/120AH lead acid battery
light color
Yellow/white/green/blue/black
controller
30A
inverter
500W pure sine wave
display
LCD
output
220V/12V/5V
Product Description

Product Details

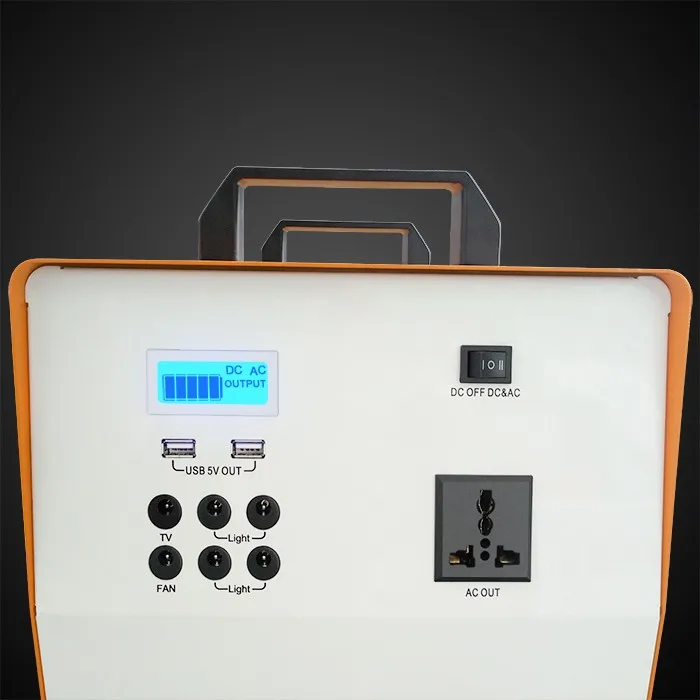

LCD dispaly to show battery capacity,DC/AC output status,charge status.

six 12V outputs for led lighting,DC fan,DC TV

two usb outputs for mobile charging

 a AC output for AC appliances.(less than 500W)

Product Details

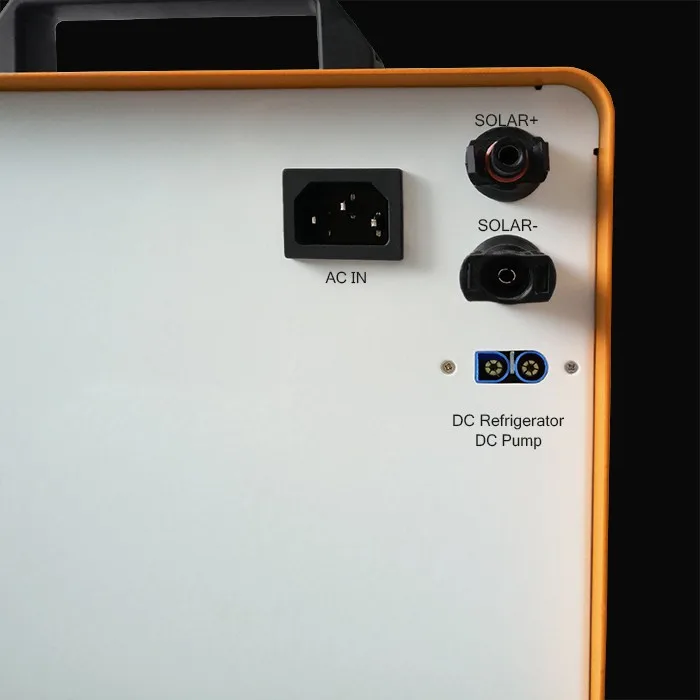

MC4 connectors for solar panel plug and play

AC charge port for rainy days backup charging

A BIG CURRENT OUTPUT FOR DC REFRIGERATOR OR DC PUMP UP TO 25A

Product Details

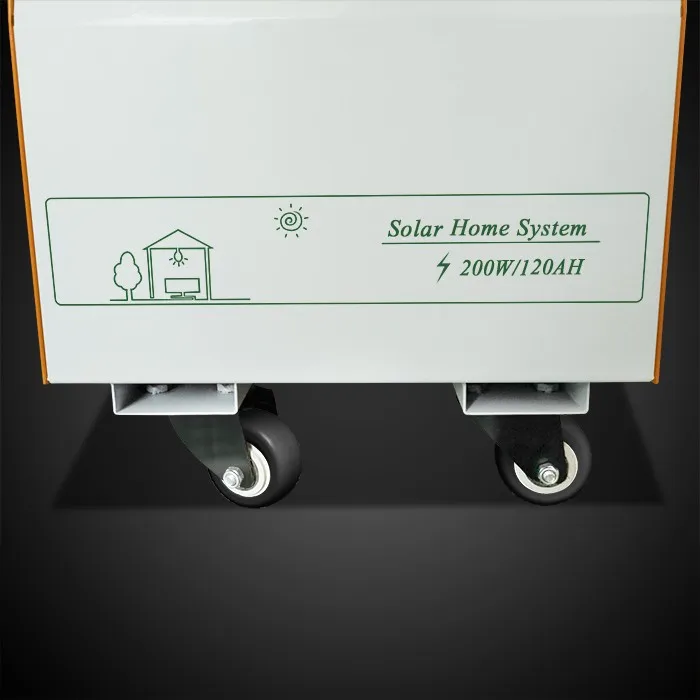

rolling wheels for easy move around

reinforcing ribs to make the system more stronger

Product Details

metal case can be customized to any color

good ventilation on both sides

controller spec
type
PWM
rated solar panel
200W
solar panel input voltage range(Vdc)
17-22
suggest voltage
18V
Max input current
30A
Max output current(DC)
25A
Max output current(AC)
2.5A
battery float voltage Vdc
14.4
battery constant voltage Vdc
13.5
AC input spec
input voltage range
85-256V
input frequency
50/60Hz
input current
7A
inverter spec
output voltage
220/230(100-110V or 240V can be customized)
frequency
50/60
max efficiency
88%
overload capacity
120%
output peak power
1500W<2S
output wave
pure sine wave

This solar power system has overload,overcharge,over-discharge,over temperature,ect protection,multifuction design can meet various family requirements
