(EPS-1000W) Off grid auto switch solar power inverter 100v 110v 220v 230v 240v frequency inverter with controller

FOB Reference Price:Get Latest Price
$125.00 - $140.00 / Sets | 100 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 200 >200
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SDX
Model Number:
EPS-1000W
Output Power:
1000W
Output Type:
Multiple
Size:
270*220*86MM
Weight:
3.25KG
Input Voltage:
80~264V customized
Output Voltage:
80~264V customized
Type:
DC/AC Inverters
Output Frequency:
50/60Hz
Output Current:
≤30
control algorithm:
PWM
Output waveform:
Prue Sine Wave
Max solar charging power:
36V 1000W
working mode suppport:
(AC input)Electric Supply and (DC input) Solar Power Supply
support auto switch working mode:
yes
battery capacity:
larger than12V/60AH
indication way:
LCD display
output power range:
DC 2W~70W & AC: ≤500W
Output interface:
DC12V*4 USB5V*2 AC*1
AC input & output:
should be customized
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Size:270*222*85mm
Inside carton: 365*280*150mm
Outside carton: 580*380*320mm
Outside carton including: 4PCS/carton
Outside carton G.W/N.W: 14.8KG/12.8KG
Port
Shenzhen or Hongkong in China
Lead Time :
Quantity(Sets) 1 - 200 >200
Est. Time(days) 15 To be negotiated
Product Description


1000W Pure Sine Wave Auto Switch Solar Inverter System With 12V Controller

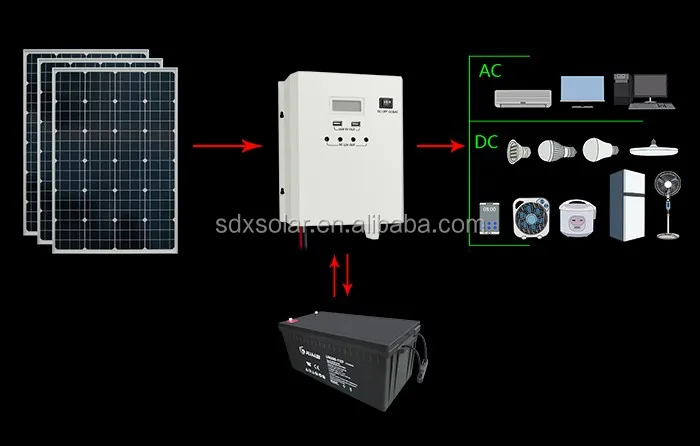

This is a smart inverter system.The inverter can automatically transform the working model between Electric Supply (AC input) and Solar Power Supply (DC input) according to user's setting.


Product Feature Of The Auto Switch Solar Inverter

1 Electric Supply Mode(AC input) as main power supply way:When there is power cut,switch to Solar Power Supply Mode automatically.

1.1 If power cuts stop for a long time,the whole system will stop after the battery power has been exhausted.

1.2 If the black out was not very long time,when the power up again, the EPS inverter will switch back to Electric Supply Mode(AC input) automatically.At the same time,solar system keeps charging to full the battery.

2 Solar Power Supply Mode as main power supply way:Firstly,set a battery discharging limit.When battery power is less than the limit,the EPS inverter will switch to Electric Supply Mode(AC input) automatically.After the battery is full again,the EPS inverter will switch back to Solar Power Supply Mode.

2.1 Example:If we set the battery discharging limit as 50%,while the battery power is less than 50%,the EPS inverter will switch to Electric Supply Mode(AC input) automatically.After the battery is full again,then the EPS inverter will switch back to Solar Power Supply Mode.


Advantage


1 Lightweight for easy carrying design.

2 Environment friendly energy saving.

3 3.2"LCD monitor is very clear to display the status of the inverter system about battery capacity,charging and discharging indication,error indication,precedence mode setting.

4 Our inverter supports intelligent control.It can automatically switch off and protect the system to against short circuit,over load,over flow or over discharge etc.

5 This EPS-1000W inverter system supports multiple power supply mode.We can set the Electric Supply Mode (AC input) or Solar Power Supply (DC input) as priority selection for the system.

6 The EPS-500W inverter system has USB output,DC output and AC output for all kinds of electrical appliances.Such as TV, LED light,USB fan, MP3, MP4, IPAD, handphone etc.

Product parameter
Model NO.
ESP-1000W
output
USB 5V/2A
DC 12V 2W~70W
AC MAX: 1000W (80V~264V  Customized)

battery voltage(Vdc)
12V or 24V (customized)
battery capacity range suggested
Larger than 12V/150AH(customized)
solar controller parameter
control algorithm
PWM
Max solar input power(W)
18V 720W
Max input current(A)
30
Max output currrent(A)
30
AC input parameter
input voltage range(Vac)
80V~264V ( Customized, for example: 195V~240V AC input for 220V AC output )
input frequency(Hz)
50/60 Hz (customized)
AC charge current(A)
7
inverter parameter
output voltage(Vac)
220/230V (other voltage 100-110V,240V can be customized)
output frequency(Hz)
50/60 Hz (customized)
Max efficiency
88%
overload capability
120%
output peak power
3000W <2S
output wave
pure sine wave


Basic Paramete

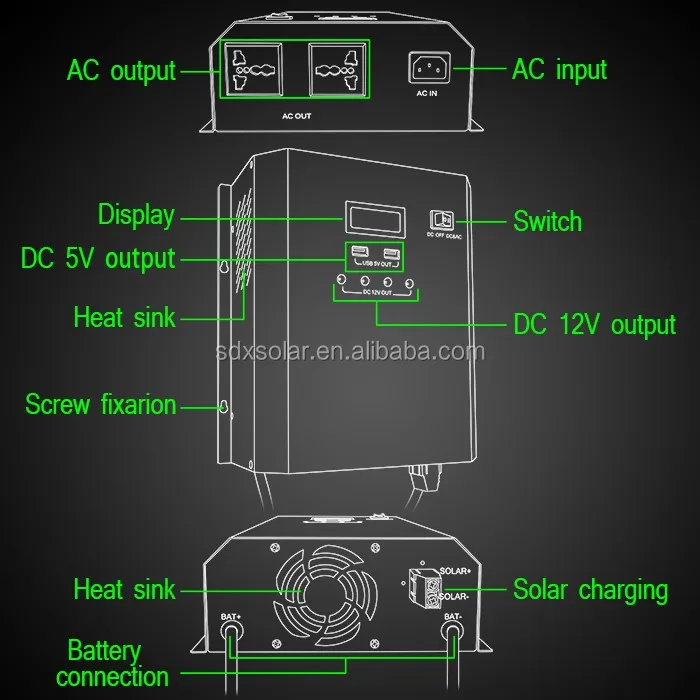

output interface : AC*2 , DC12V*4 , USB5V*2

display way: LCD (3.2" LCD Monitor)

display content: battery capacity,working status(charge,discharge and error indicate)

protection: overload,under-voltage,surge,short circuit,over charge,over discharge and over temperature,etc.


cooling ways: fan cooling

noise dB(A): <60

working temperature range(℃): -15℃-50℃

storage temperature range(℃): -5℃~30℃

working temperature: 0-90℃(no condensation)

operate altitude(M): <2000m

dimension MM: 270*220*86

package size MM: 380*280*150

Net weight KG:3.25

Gross weight KG:3.9

Packing and Shipping

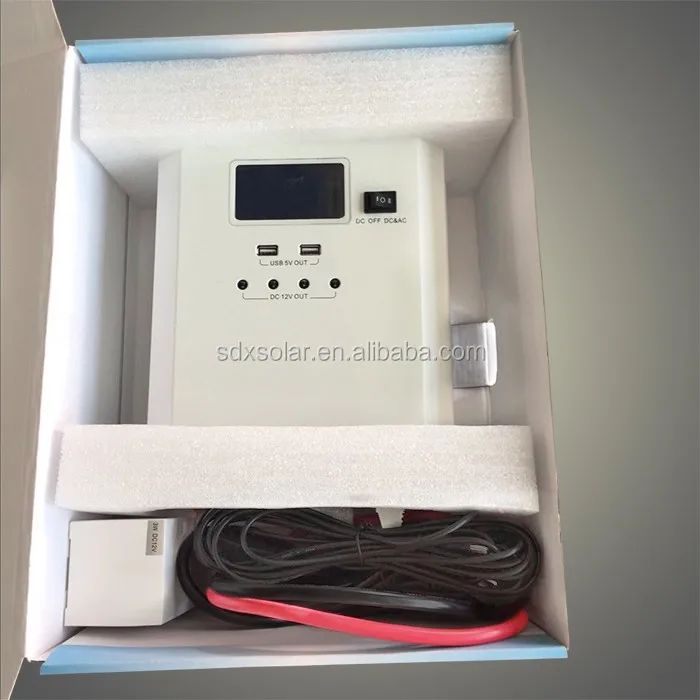

A complete set included:   1pc*solar inverter     2pcs*3W LED light

2pcs* 5M cable with switch for LED light

Our Company

Shenzhen SDX new energy technology CO.,LTD is a company integrated research,design and manufacturing of products like solar panel,Off-grid and On-grid power station,solar led street light,garden light,portable solar lighting system,solar camping lantern,solar key chain,,solar gifts and solar related application products."SDX" series products are self-innovated and manufactured.It is a hi-tech Enterprise which combines sales and services.The company now had developed good sales network,with products distributed to domestic provinces,remote areas,as well as European countries,Africa,Middle East,South Asia and South Africa.

FAQ
1.Q: Who are you?
Shenzhen SDX New Energy Technology Co., Ltd , located in shenzhen Guangming new district, is a company integrating research, design and manufacturing of solar products. Welcome OEM and ODM, 20 R&D engineers do services for you.
2.Q:What is the payment terms,delivery port and MOQ of products?
We can provide EXW, FOB, CRF and CIF price depends on your requests. The delivery port can be Shenzhen or Hongkong. We accept T/T, L/C, Western union, Paypal, etc.
3.Q:Can I get some samples? ?
Yes,of course. We are honored to offer you samples,usually samples can be ready in 3~7 days.
4.Q:How long is the warranty of your products? How to guarantee the after-sale services?
A: We guarantee most of our products for 1 year, the solar panel for 5 years.
We will prepare 3‰ to 5‰ accessories for easy damage parts. We will help you solve all the technology problems through email, phone, video, etc.

5.Q: Can I order less than MOQ?

A: Yes, you can. However, we will adjust price according to production cost.
Our Serivces

If there is any need,please feel free to contact Lydia.

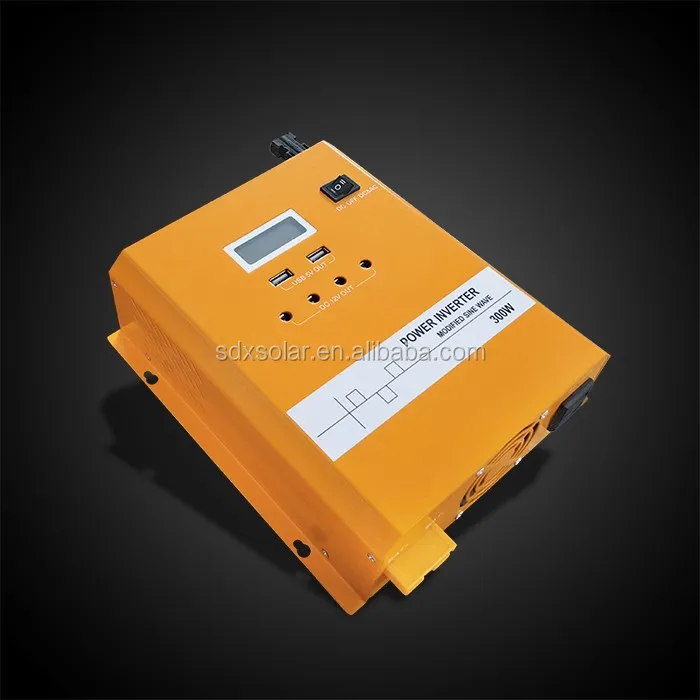

SC-M300W

output power(W):300W
battery voltage(Vdc):12V
battery capacity range suggested:80AH-300AH
solar panel input voltage range:16V-22V(suggested 18V)
Max solar input power(W):300W
Max input current(A):20A
Max output currrent(A):30A
AC input voltage range(Vac):80V~264V
AC charge current(A):7A
inverter output wave: modified sine wave
output interfac:AC*1 DC12V*4 USB5V*2

SC-P500W

output power(W):500W

battery voltage(Vdc):12V

battery capacity range suggested:100AH-400AH

solar panel input voltage range:16V-22V(suggested 18V)

Max solar input power(W):500W

Max input current(A):30A

Max output currrent(A):30A

AC input voltage range(Vac):80V~264V

AC charge current(A):7A

inverter output wave:pure sine wave

output interfac:AC*1  DC12V*4  USB5V*2

SC-P600W

output power(W):600W
battery voltage(Vdc):12V
battery capacity range suggested:150AH-500AH
solar panel input voltage range:16V-22V(suggested 18V)
Max solar input power(W):500W
Max input current(A):30A
Max output currrent(A):30A
AC input voltage range(Vac):80V~264V
AC charge current(A):7A
inverter output wave:pure sine wave
output interfac:AC*1 DC12V*4 USB5V*2

SC-P800W

output power(W):800W
battery voltage(Vdc):12V
battery capacity range suggested:200AH-600AH
solar panel input voltage range:16V-22V(suggested 18V)
Max solar input power(W):500W
Max input current(A):30A
Max output currrent(A):30A
AC input voltage range(Vac):80V~264V
AC charge current(A):7A
inverter output wave:pure sine wave
output interfac:AC*2 DC12V*4 USB5V*2

SC-P1000W

output power(W):1000W
battery voltage(Vdc):24V
battery capacity range suggested:150AH-400AH
solar panel input voltage range:30V-50V(suggested 36V)
Max solar input power(W):1000W
Max input current(A):30A
Max output currrent(A):30A
AC input voltage range(Vac):80V~264V
AC charge current(A):7A
inverter output wave:pure sine wave
output interfac:AC*2 DC12V*4 USB5V*2
