Short Circuit.over Voltage,lower voltage,over load
Sealed Lead Acid Battery
2*5V USB / 6* 12V DC output
2000 Set/Sets per Month
Packaging & Delivery
system packing size: 265*160*260MM; 4sets/carton;
carton size: 550*340*285MM NW/GW:27.2kg/28.1kg
solar panel packing:
single package: 475*355*35MM,8pcs/ctn,
1 - 200
To be negotiated
Shenzhen SDX new energy technology CO.,LTD is a company integrated research,design and manufacturing of products like solar panel,Off-grid and On-grid power station,solar led street light,garden light,portable solar lighting system,solar camping lantern,solar key chain,,solar gifts and solar related application products."SDX" series products are self-innovated and manufactured.It is a hi-tech Enterprise which combines sales and services.The company now had developed good sales network,with products distributed to domestic provinces,remote areas,as well as European countries,Africa,Middle East,South Asia and South Africa.
18V20W poly solar panel (mono panel or poly
panel ) 12V/12AH Battery, 12V/5A Controller
(with 5M cables)
DC 12V/5A USB 5V/1A
12V 12AH Lead-acide
Charging Time (solar panel)
Duration Time (Loading 2W*2pcs LED light and 15W*1pc Fan)
Over pressure Protection Voltage
Over-discharge Protection Voltage
Sleep Mode Curret
Recommend Working Temperature

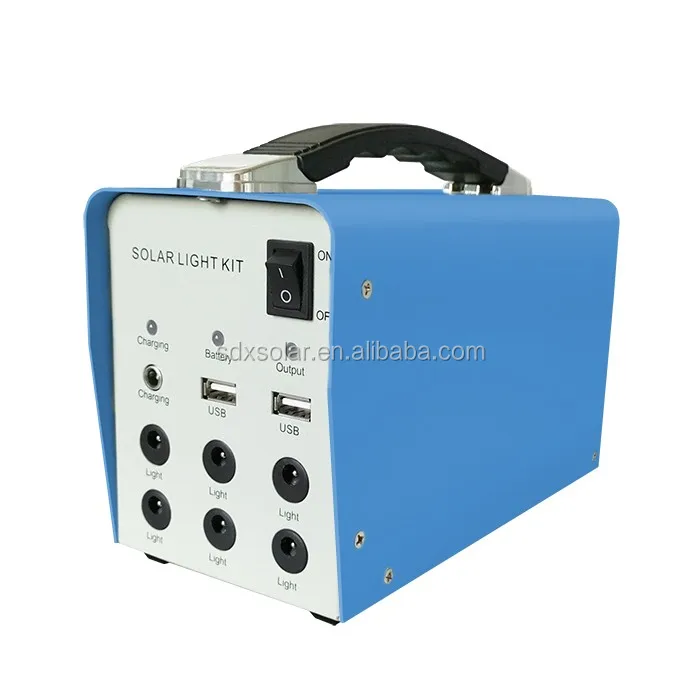

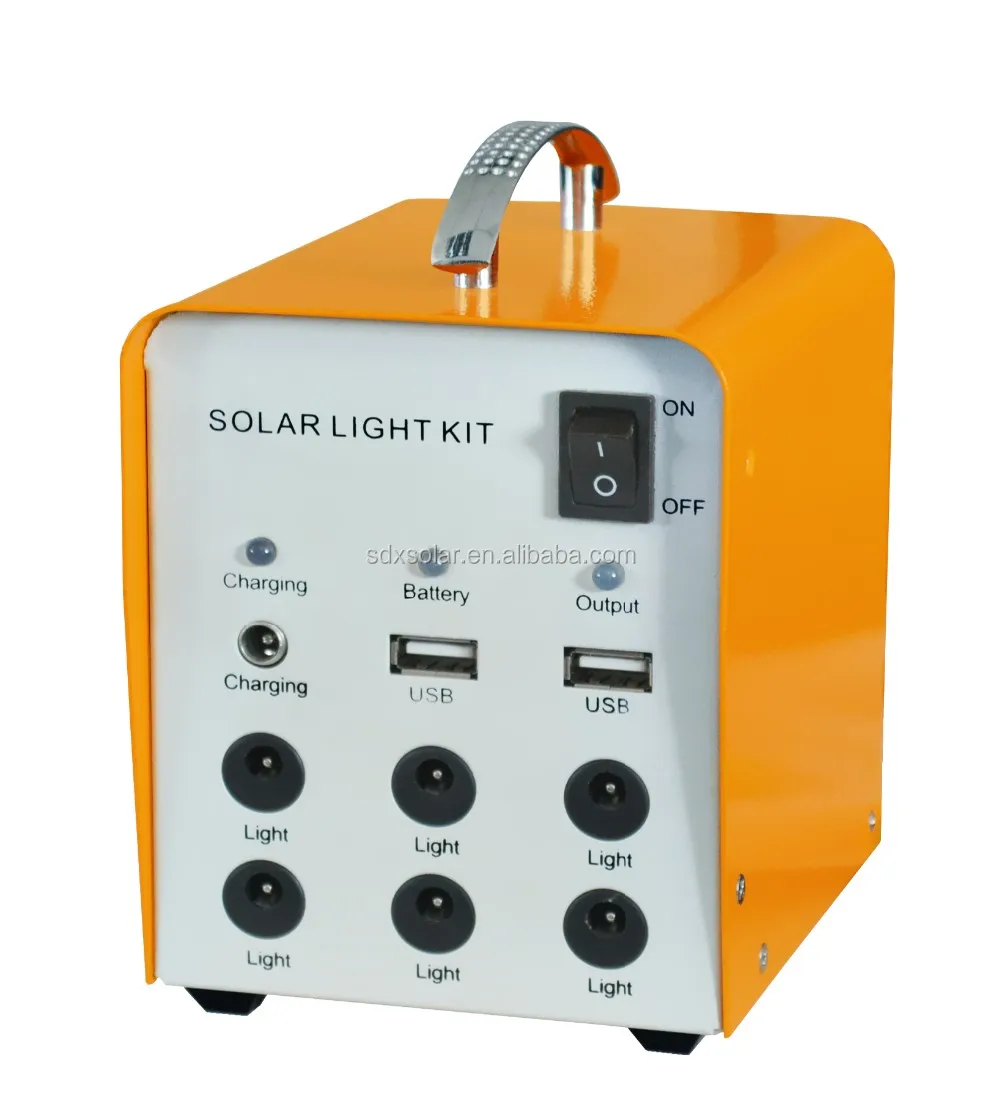

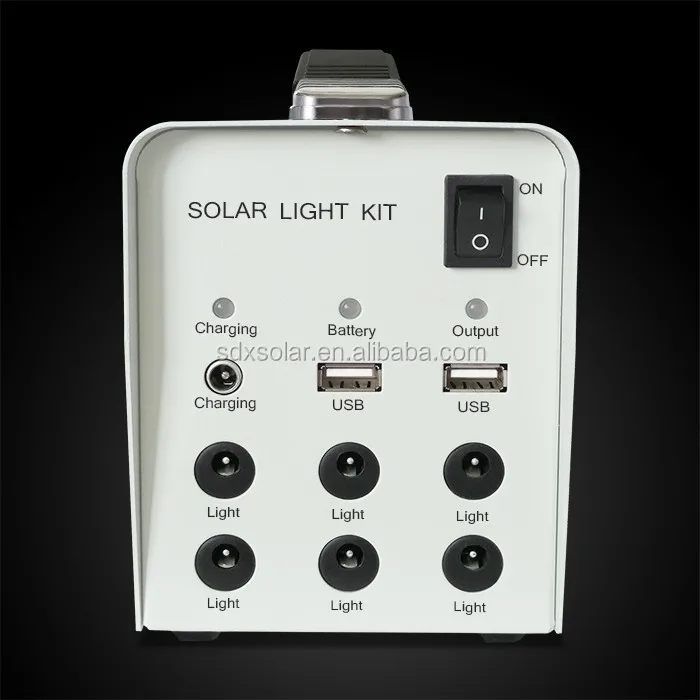

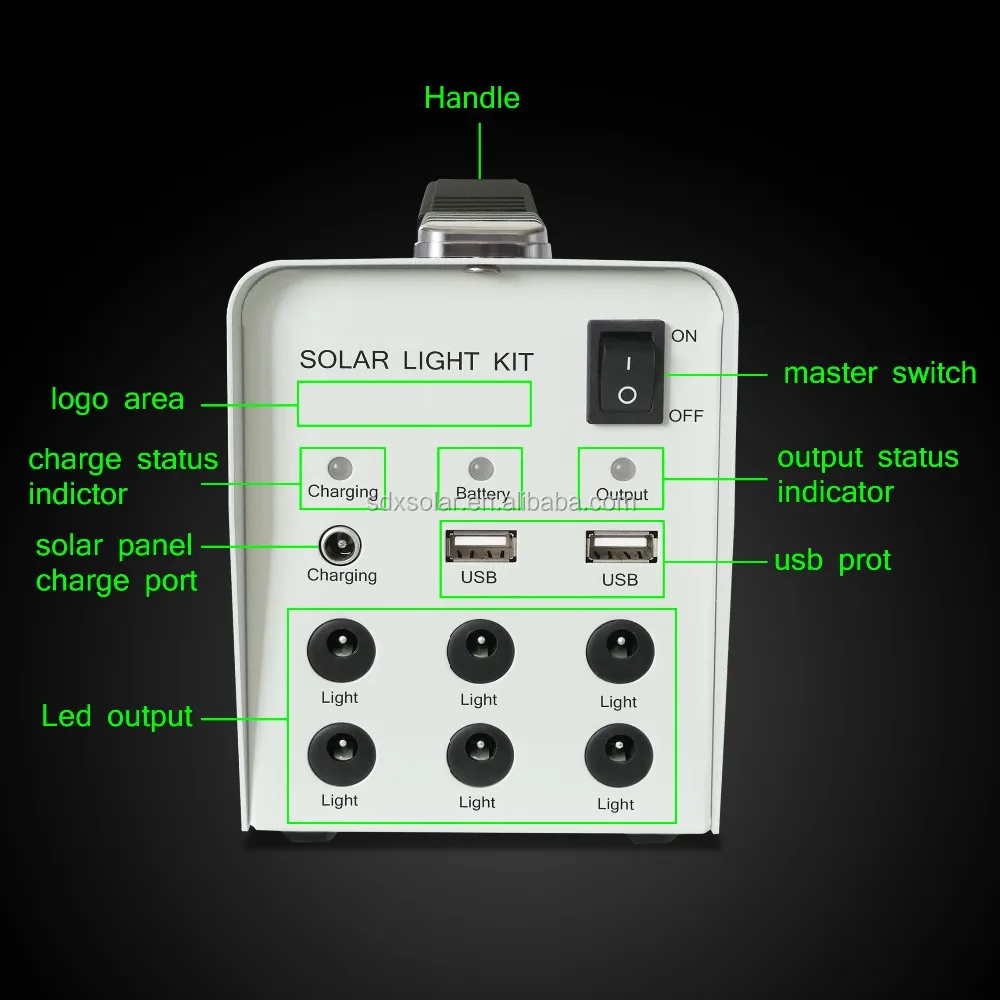

Solar lighting kit function:
1. With the monolithic processor as the major controller, this solar lighting kit effectively manages all charging processes. The key function of overcharge & over discharged protection can extend the life span of the battery. The processor protects against arcing during the low voltage conditions.
2. The standby function: Following five minutes after startup, if no output loads are detected, the solar lighting kit will automatically enter into a low power consumption standby mode.
3.USB output overload protection: The USB output will shut down automatically if the maximum output current exceeds 1000mA when charging for mobiles, MP3, and other rated 5V devices etc.
4. Overload protection: The output will shut down automatically when current exceeds 3 Amps
5. Independent Charging & Discharging: The solar lighting kit can charge and discharge independently.
6. Load indicator: A battery indicator light will display red when charging, and green when the system is fully charged. When the solar lighting kit operates under low voltage, the indicator will be red.
7. This solar lighting kit can be charged by AC adapter.(note:The adapter should be designed specially for charging lead acid battery,charge current should be lower than 2A)
Advantages of solar generator
* High efficiency and energy saving solar generator.
* Powered by sunlight during daytime
* Easy to install
* LED technology used
* No electricity required
* Safe and long life
* Led light and cable can be changed according to customer's requirment

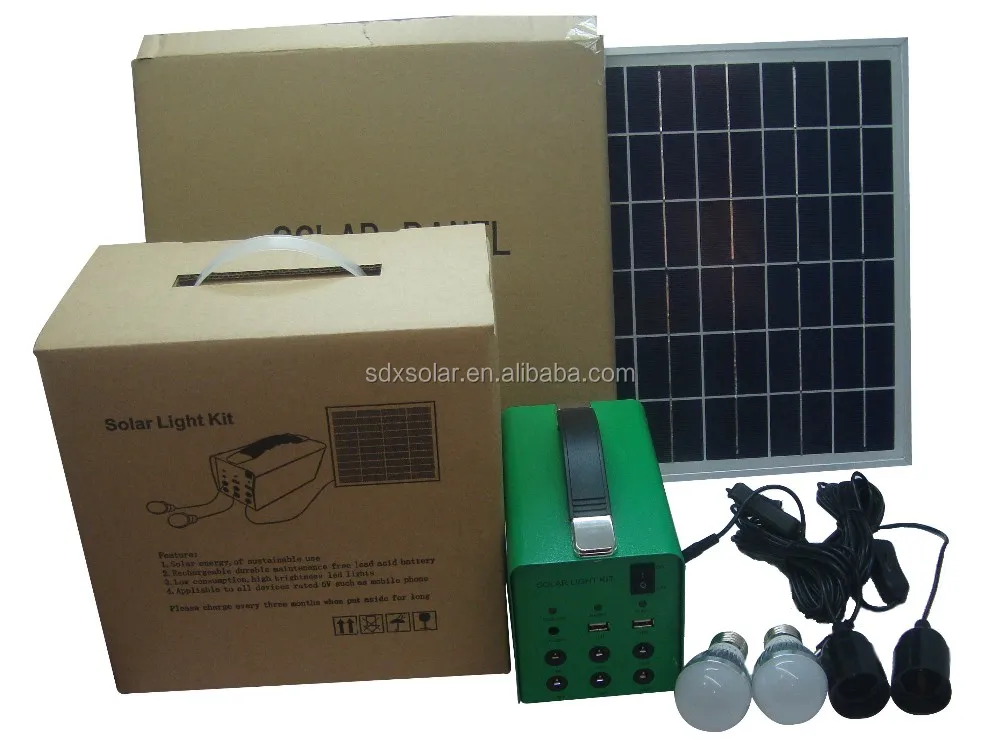

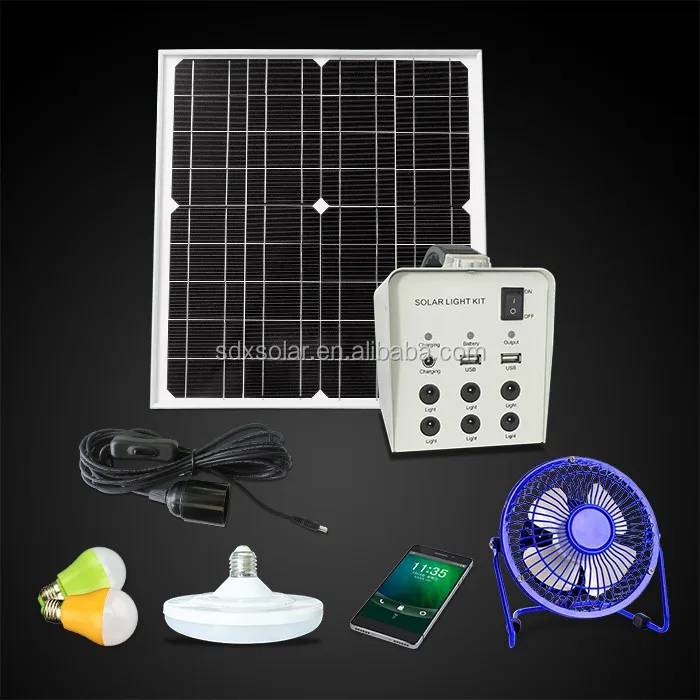

General Packing Informations for A Completed Set
Normally Poly Solar panel (Mono Solar Panel customized)
Solar Light Kit
2W led bulbs
cable with switch
These 5M long cable are for the led bulbs

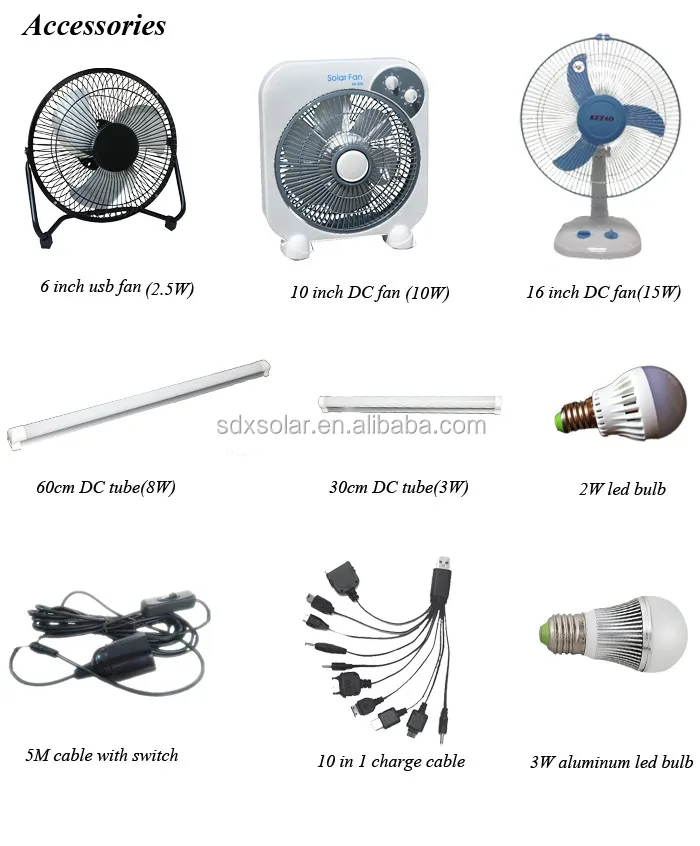

Other Optional Accessories

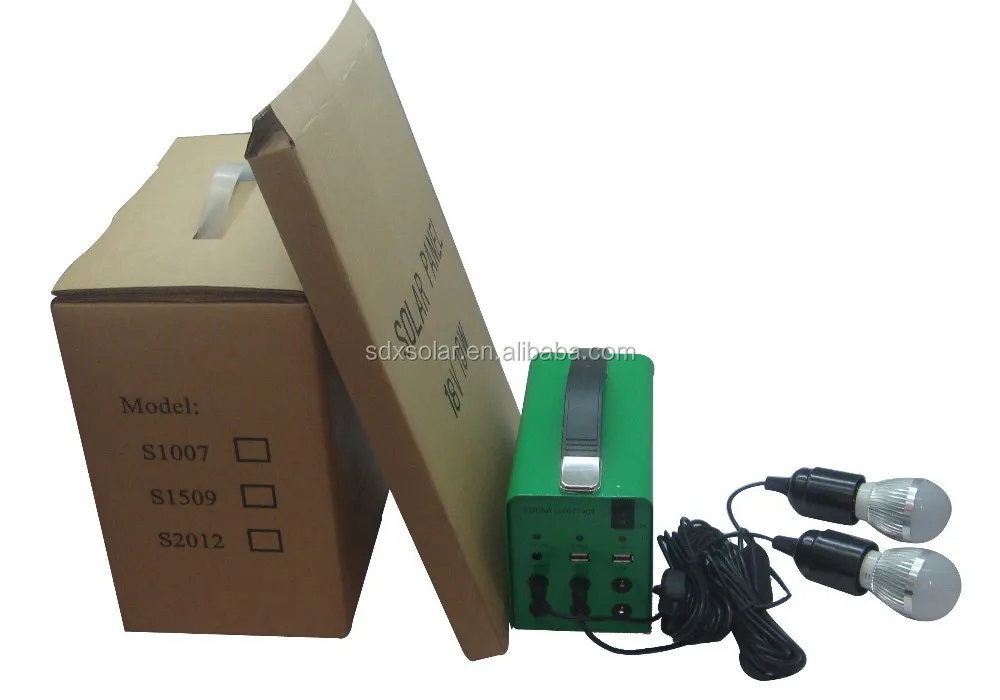

Packing and Shipping
solar panel and solar lighting kit are packed seperately
