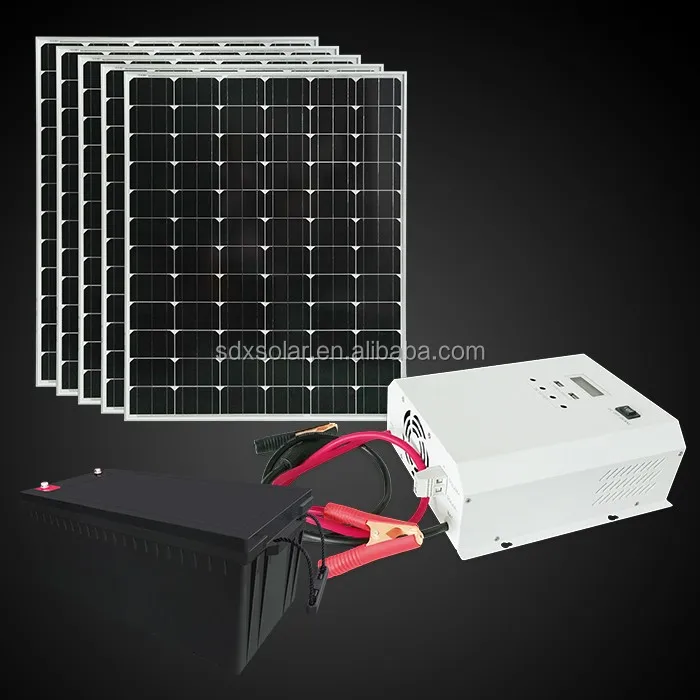

home using off grid 800w inverter solar power system

FOB Reference Price:Get Latest Price
$120.00 - $140.00 / Sets | 100 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 200 >200
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SDX
Model Number:
SC-P800W
Output Power:
≤800W
Output Type:
DC & AC
Size:
270*220*86mm
Weight:
3.11kg
Input Voltage:
DC 16-22V / AC 80~264V
Output Voltage:
DC 12V / AC 80~264V
Type:
DC/AC Inverters
Output Frequency:
50/60Hz
Output Current:
≤30A
output wave:
pure sine wave
battery voltage(Vdc):
12V
battery capacity range suggested:
200AH-600AH
control algorithm:
PWM
Max solar input power(W):
500W
solar panel input voltage range(Vdc):
16-22V (suggested 18V)
Max input / output currrent(A):
30A
AC input voltage range(Vac):
80~264V
output peak power:
2400W <2S
output interface:
AC*2 , DC12V*4, USB5V*2
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Size:270*222*85mm
Inside carton: 365*280*150mm
Outside carton: 580*380*320mm
Outside carton including: 4PCS/carton
Outside carton G.W/N.W: 14.8KG/12.8KG
Port
Shenzhen China
Lead Time :
Quantity(Sets) 1 - 200 >200
Est. Time(days) 15 To be negotiated
Product Description

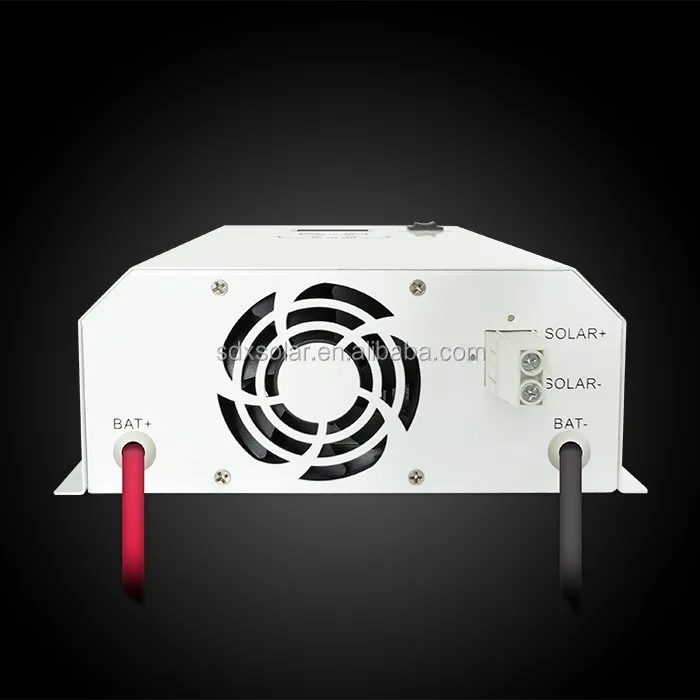

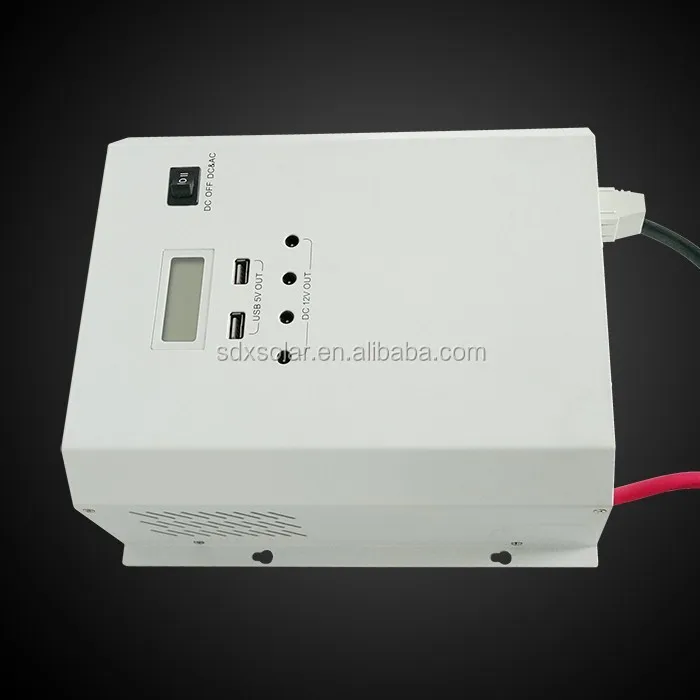

800W Wall Mounted Solar Inverter With Controller (Pure Sine Wave)


A complete set included:  1pc*solar inverter      2pcs*3W LED light
                                               2pcs* 5M cable with switch for LED light

Product Feature
True sine wave output THD<3%
Make use of advanced double CPU microchip intelligent control technology,it features in good reliability and low fault
Multifunction and easy installation.controller,inverter and charger are independent design
LCD display can see obvisouly battery capacity,charge and error status
Small in size,high transfer efficiency
Offer usb charge and 12V DC power supply function
Three way switch,DC and AC can work seperately to reduce consumption
Perfect protection function:under voltage,over-voltage,over-temperature,short circuit and over load protection,etc
Various charge ways:by solar panel as well as by AC
Model NO.
SC-P800W
output power(W)
800
battery voltage(Vdc)
12
battery capacity range suggested
200AH-600AH

solar controller parameter

control algorithm :PWM
Max solar input power(W):500
solar panel input voltage range(Vdc):16-22
sugested work voltage(Vdc):18
Max input current(A): 30
Max output currrent(A): 30
battery constant charge voltage(Vdc): 14.4
battery floating charge voltage(Vdc): 13.5


AC input paramete
input voltage range(Vac)
80~264V
input frequency(Hz)
50/60
AC charge current(A)
7

inverter parameter

output voltage(Vac):220/230(other voltage 100-110V,240V can be customized
output frequency(Hz):50/60
Max efficiency: 88%
overload capability:120%
output peak power: 2400W <2S
output wave: pure sine wave: pure sine wave

Basic Paramete

output interface : AC*2 , DC12V*4 , USB5V*2

display way: LCD

display content: battery capacity,working status(charge,discharge and error indicate)

protection: overload,under-voltage,surge,short circuit,over charge,over discharge and over temperature,etc.

cooling ways: fan cooling

noise dB(A): <60

working temperature range(℃): -15℃-50℃

storage temperature range(℃): -5℃~30℃

working temperature: 0-90℃(no condensation)

operate altitude(M): <2000m

dimension MM: 270*220*86

package size MM: 380*280*150

Net weight KG: 3.11

Gross weight KG: 3.76


Other Solar inverters


Clink here to see more products


SC-M300W

output power(W):300W
battery voltage(Vdc):12V
battery capacity range suggested:80AH-300AH
solar panel input voltage range:16V-22V(suggested 18V)
Max solar input power(W):300W
Max input current(A):20A
Max output currrent(A):30A
AC input voltage range(Vac):80V~264V
AC charge current(A):7A
inverter output wave: modified sine wave
output interfac:AC*1 DC12V*4 USB5V*2

SC-P500W

output power(W):500W

battery voltage(Vdc):12V

battery capacity range suggested:100AH-400AH

solar panel input voltage range:16V-22V(suggested 18V)

Max solar input power(W):500W

Max input current(A):30A

Max output currrent(A):30A

AC input voltage range(Vac):80V~264V

AC charge current(A):7A

inverter output wave:pure sine wave

output interfac:AC*1  DC12V*4  USB5V*2

SC-P600W

output power(W):600W
battery voltage(Vdc):12V
battery capacity range suggested:150AH-500AH
solar panel input voltage range:16V-22V(suggested 18V)
Max solar input power(W):500W
Max input current(A):30A
Max output currrent(A):30A
AC input voltage range(Vac):80V~264V
AC charge current(A):7A
inverter output wave:pure sine wave
output interfac:AC*1 DC12V*4 USB5V*2

SC-P800W

output power(W):800W
battery voltage(Vdc):12V
battery capacity range suggested:200AH-600AH
solar panel input voltage range:16V-22V(suggested 18V)
Max solar input power(W):500W
Max input current(A):30A
Max output currrent(A):30A
AC input voltage range(Vac):80V~264V
AC charge current(A):7A
inverter output wave:pure sine wave
output interfac:AC*2 DC12V*4 USB5V*2

SC-P1000W

output power(W):1000W
battery voltage(Vdc):24V
battery capacity range suggested:150AH-400AH
solar panel input voltage range:30V-50V(suggested 36V)
Max solar input power(W):1000W
Max input current(A):30A
Max output currrent(A):30A
AC input voltage range(Vac):80V~264V
AC charge current(A):7A
inverter output wave:pure sine wave
output interfac:AC*2 DC12V*4 USB5V*2


Our Company

Shenzhen SDX new energy technology CO.,LTD is a company integrated research,design and manufacturing of products like solar panel,Off-grid and On-grid power station,solar led street light,garden light,portable solar lighting system,solar camping lantern,solar key chain,,solar gifts and solar related application products."SDX" series products are self-innovated and manufactured.It is a hi-tech Enterprise which combines sales and services.The company now had developed good sales network,with products distributed to domestic provinces,remote areas,as well as European countries,Africa,Middle East,South Asia and South Africa.

Packing and Shipping

A complete set included:   1pc*solar inverter     2pcs*3W LED light

2pcs* 5M cable with switch for LED light

Our Serivces

If there is any need,please feel free to contact Lydia.


FAQ
1.Q: Who are you?
Shenzhen SDX New Energy Technology Co., Ltd , located in shenzhen Guangming new district, is a company integrating research, design and manufacturing of solar products. Welcome OEM and ODM, 20 R&D engineers do services for you.
2.Q:What is the payment terms,delivery port and MOQ of products?
We can provide EXW, FOB, CRF and CIF price depends on your requests. The delivery port can be Shenzhen or Hongkong. We accept T/T, L/C, Western union, Paypal, etc.
3.Q:Can I get some samples? ?
Yes,of course. We are honored to offer you samples,usually samples can be ready in 3~7 days.
4.Q:How long is the warranty of your products? How to guarantee the after-sale services?
A: We guarantee most of our products for 1 year, the solar panel for 5 years.
We will prepare 3‰ to 5‰ accessories for easy damage parts. We will help you solve all the technology problems through email, phone, video, etc.

5.Q: Can I order less than MOQ?

A: Yes, you can. However, we will adjust price according to production cost.
