15W 9AH complete solar panel kit set for home with 6 lights

FOB Reference Price:Get Latest Price
$35.00 - $60.00 / Sets | 100 Set/Sets (Min. Order)
System Type:
Off-Grid Solar System
Solar Power (W):
15W
Lead Time:
Quantity(Sets) 1 - 200 >200
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 100 Sets)
Customized packaging (Min. Order: 500 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SDX
Model Number:
SDX-S1509
Specification:
Normal
Application:
Home
Output Voltage (V):
12V
Load Power (W):
60W
Work Time (h):
14-15H
Solar Panel Type:
Grade A Polycrystalline
Battery Type:
Lead Acid
Controller Type:
PWM
Solar panel type:
Poly Solar Panel(Mono Solar Panel Optional)
Solar charging:
18V/15W
Battery capacity:
12V 9AH
Controller:
12V/5A
solar charging time:
8-9H
LED Solar bulb:
2pcs (up to 6 pcs optional)

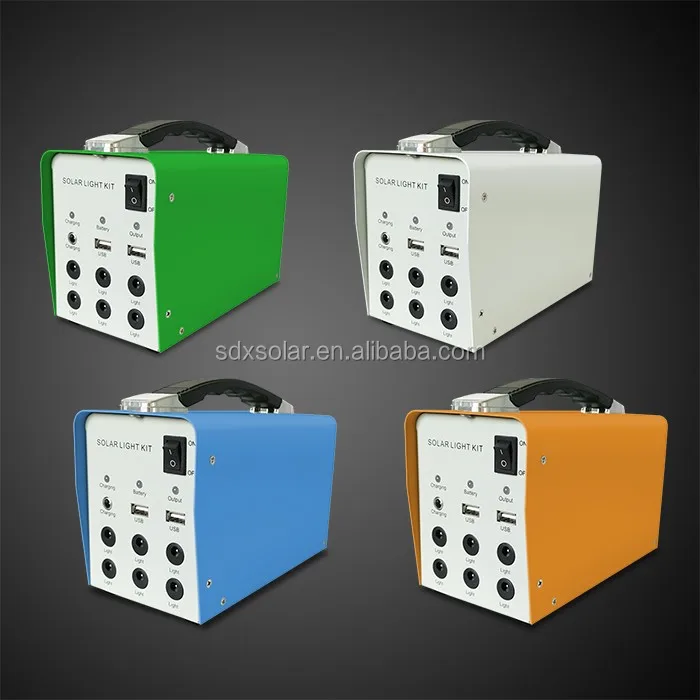

Color:
Orange, Blue, Green, White
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
system packing size: 26.5*16*26CM; 4sets/carton;
carton size: 550*340*285CM, NW/GW:19kg/21kg
solar panel packing: 1pcs/box,8pcs/ctn,
Meas:375*370*295MM, NW/GW:12kg/13kg
Port
Shenzhen China
Lead Time :
Quantity(Sets) 1 - 200 >200
Est. Time(days) 15 To be negotiated
Product Description


Environmentally friendly solar generator

This solar generator is powered by solar panels and the panels are placed toward the sunlight at right angle, so that it can be charged better. It transforms solar energy into storage battery in daytime.

The solar generator is widely used in field trips, nomads, families, boat, islands, camping and some emergency etc. Using for led light and mobiles or other solar appliances.

Model
SDX-S1509
Charging power
18V/15W      panelsize:355*350*18mm
                    (with 5M cables)
Output Voltage
DC 12V/5A    USB 5V/1A
 Storage Battery
12V 9AH    Lead-acide
Charging Time (solar panel)
8-9H
Duration Time (2pcs of 2W LED)
14-15H
Over pressure Protection Voltage
14.4V
Over-discharge Protection Voltage
11V
Standby Current
20mA
Sleep Mode Curret
100uA
Recommend Working Temperature
0~30

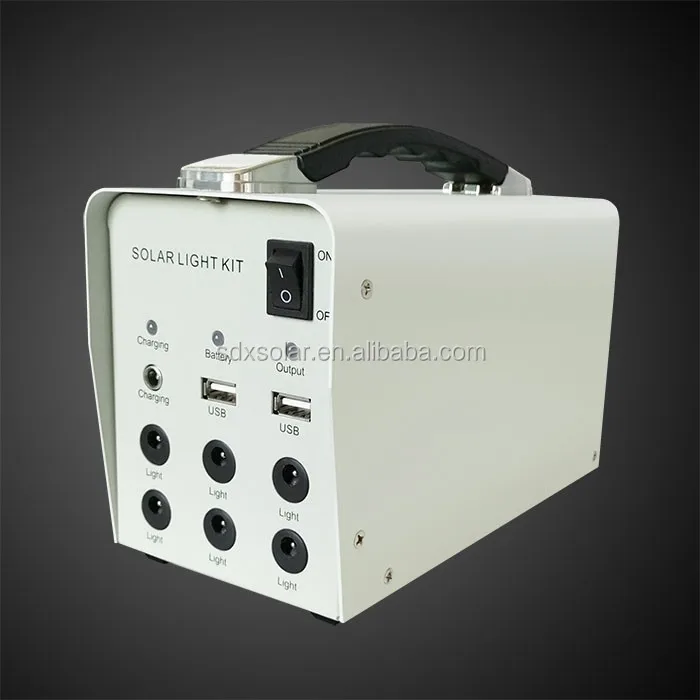

Solar lighting kit function:



1. With the monolithic processor as the major controller, this solar lighting kit effectively manages all charging processes. The key function of overcharge & over discharged protection can extend the life span of the battery. The processor protects against arcing during the low voltage conditions.


2. The standby function: Following five minutes after startup, if no output loads are detected, the solar lighting kit will automatically enter into a low power consumption standby mode.

3.USB output overload protection: The USB output will shut down automatically if the maximum output current exceeds 1000mA when charging for mobiles, MP3, and other rated 5V devices etc.


4. Overload protection: The output will shut down automatically when current exceeds 3 Amps

5. Independent Charging & Discharging: The solar lighting kit can charge and discharge independently.


6. Load indicator: A battery indicator light will display red when charging, and green when the system is fully charged. When the solar lighting kit operates under low voltage, the indicator will be red.


7. This solar lighting kit can be charged by AC adapter.(note:The adapter should be designed specially for charging lead acid battery,charge current should be lower than 2A)

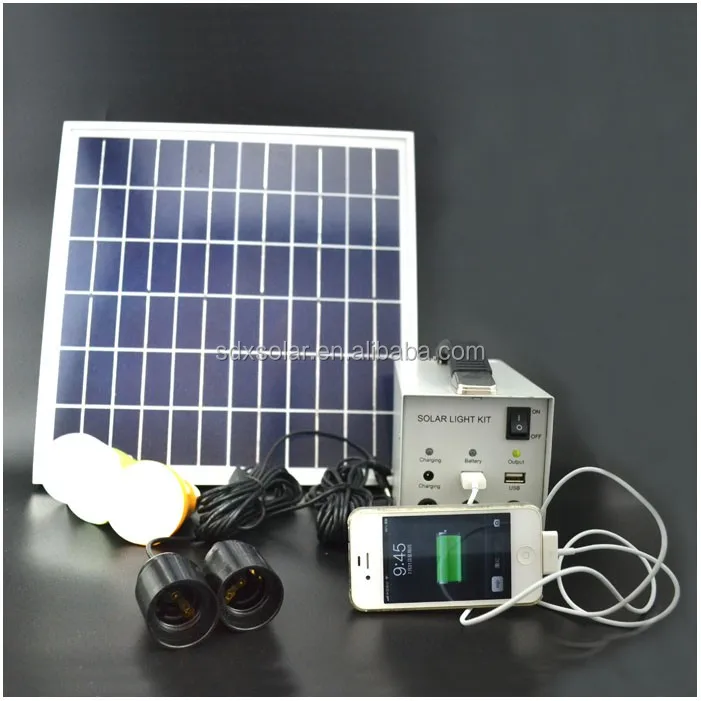

General Packing Informations for A Completed Set


Item No.
Description
Qty
Unit
Notes
1
Solar panel
1
pc
Normally Poly Solar panel (Mono Solar Panel customized)
2
Solar Light Kit
1
set
3
3W led bulbs
2
pcs
4
cable with switch
2
sets
These 5M long cable are for the led bulbs
5
instruction manual
1
pc


Other Optional Accessories



Our Other Solar Lighting Systems


SDX-S0504


SDX-S1007


SDX-S1509


SDX-S2012



SDX-S3017



SDX-S5024


Model
Solar Panel
Battery
Controller
Charging Time
Loads(LED Lights and Fan)
Working Time
SDX-S0504
18V/5W
12V4AH
12V/5A
11-12H
2W*2PCS LED
10-11H
SDX-S1007
18V/10W
12V7AH
12V/5A
10-11H
3W*2PCS LED
11-12H
SDX-S1509
18V/15W
12V9AH
12V/5A
8-9H
3W*2PCS LED
14-15H
SDX-S2012
18V/20W
12V12AH
12V/5A
8-9H
2W*2PCS LED
15W*1PC Fan
6-7H
SDX-S3017
18V/30W
12V17AH
12V/5A
8-9H
2W*2PCS LED
15W*1PC Fan
8-9H
SDX-S5024
18V/50W
12V24AH
12V/5A
7-8H
2W*2PCS LED
15W*1PC Fan
12-13H
Packing and Shipping

solar panel and solar lighting kit are packed seperately


Our Company

Shenzhen SDX new energy technology CO.,LTD is a company integrated research,design and manufacturing of products like solar panel,Off-grid and On-grid power station,solar led street light,garden light,portable solar lighting system,solar camping lantern,solar key chain,,solar gifts and solar related application products."SDX" series products are self-innovated and manufactured.It is a hi-tech Enterprise which combines sales and services.The company now had developed good sales network,with products distributed to domestic provinces,remote areas,as well as European countries,Africa,Middle East,South Asia and South Africa.
