80W 40AH home solar system rural areas for solar fan solar home lighting solar usb charging

FOB Reference Price:Get Latest Price
$150.00 - $180.00 / Sets | 100 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 200 >200
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SDX
Model Number:
SDX-S80W40AH
Solar Power (W):
80W
Specification:
Normal
Application:
Home
Output Voltage (V):
12V
Load Power (W):
72W
Work Time (h):
10H(6*3Wled,1*15WFAN,1* 20WTV)
Solar panel type:
Poly Crystalline Solar Panel (Optional)
solar Charging power:
8V/80W
Output voltage:
DC 12V/8A ,USB 5V/1A
Storage battery:
12V/40AH lead acid
Charging time(solar panel):
7-8 H
solar kit function:
DC output ,DC & FM
Indicating Method:
LCD display
output interface:
2*5W USB,6*3W LED light,1*19W TV,1*15w Fan
MP3 & FM function:
support
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
system packing size:
36.5*23.5*31CM;1sets/carton;
carton size: 44*30*36CM NW/GW:18.5kg/20kg
solar panel packing:
single package: 1pcs/ctn,
Meas:1030*535*40MM NW/GW:6.9kg/8kg
Port
Shenzhen or Hongkong China
Lead Time :
Quantity(Sets) 1 - 200 >200
Est. Time(days) 15 To be negotiated
Product Description


18V/80W solar panel :Normally Poly Solar panel (Mono Solar Panel Customized)
12V/40AH Battery,12V/10A Controller     Model No.:SDX-S80W40AH



1 This is a DC power supply system,designed especially for users in remote locations.


2 The main circuit of this system is a high performance,high precision 12 digit AD processor operating as the system controller.The unit is equipped with a range of various functions such as overcharging limitation,over discharging protection, standby voltage for low power consumption,USB output and over load protection , independent charging and discharging .


3 The DC output of the system has multiple interfaces that can satisfy various demands. DC output interfaces include 8*12V DC and 2*5vV USB outputs.


4 This solar generator support 2pcs * 4W speakers.It has FM and MP3 function.

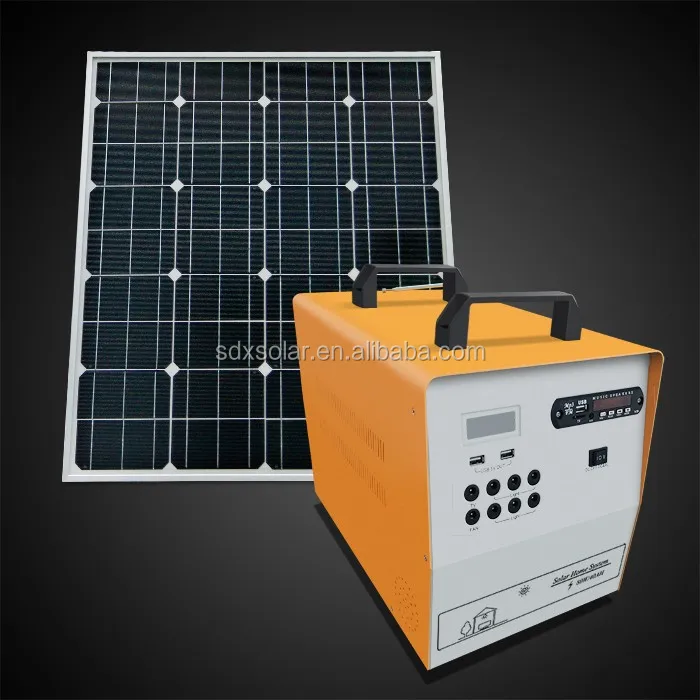

Solar Panel Informations


Model No.:SDX-S-80W40AH

Solar Panel Charging power: 18V/80W

Panel Size:1000*505*30MM(with 5M cables)

Charging Time (solar panel): 8-9H (charged 40AH battery)

Battery Informations

Battery Output Power:72W

Battery Output Voltage: DC 12V/6A   USB 5V/1A

Built-in Battery Capacity Range: 40-60AH

40AH Battery Duration Time (Loading 3W*2pcs LED light,15W*1pc Fan and 20W*1 set TV): 9-10H

Over pressure Protection Voltage: 14.4V
Over-discharge Protection Voltage: 11V
Standby Current: 20mA
Sleep Mode Curret: 100uA
Recommend Working Temperature: 0~30℃

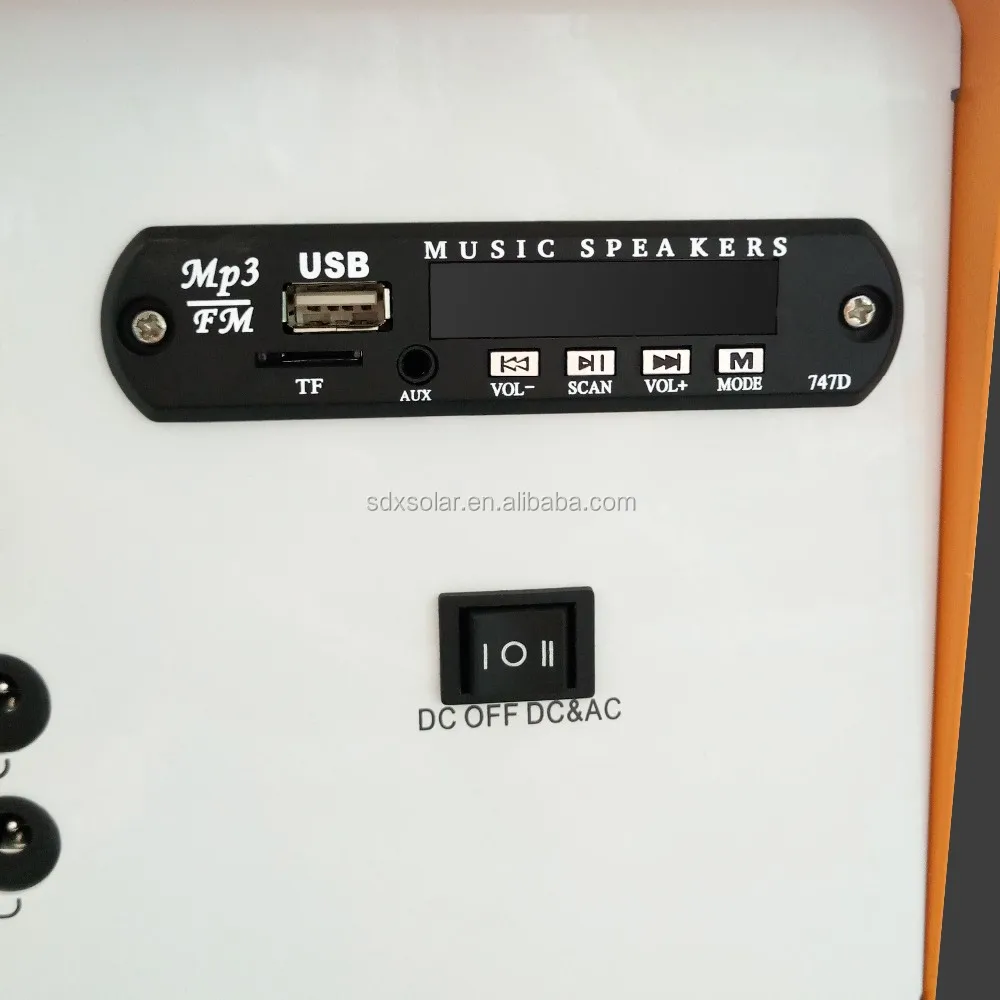

Radio Module

Rated Voltage: 5V
Rated Power: 3W
Supported Functions:MP3,USB drive,TF card,FM

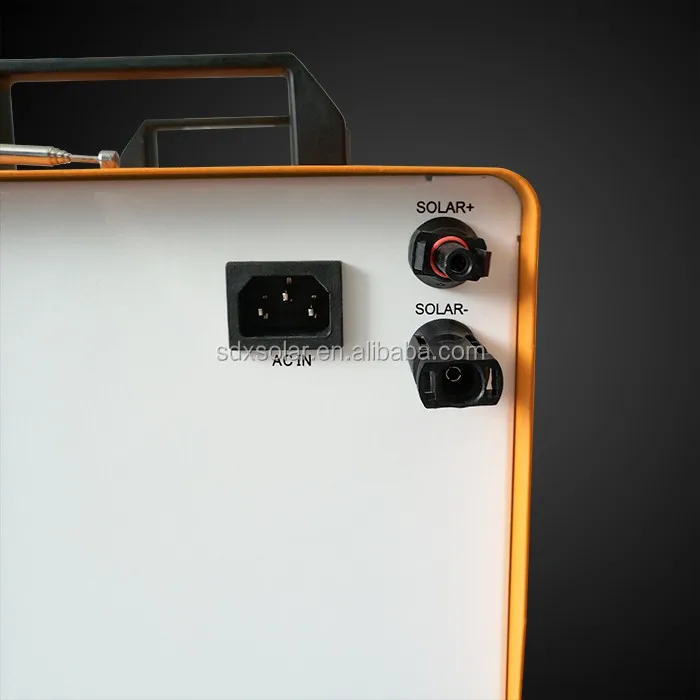

Electric Supply's Input Parameters

Input Voltage Range (Mains supply): 85V-256V

Input Frequency: 50/60HZ

AC Charging Current: 5A

Solar Lighting Kit Basic Parameters

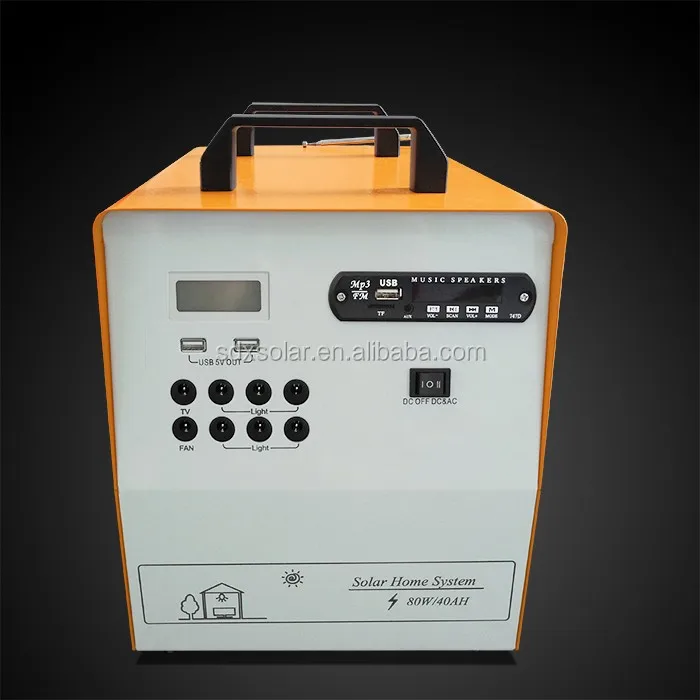

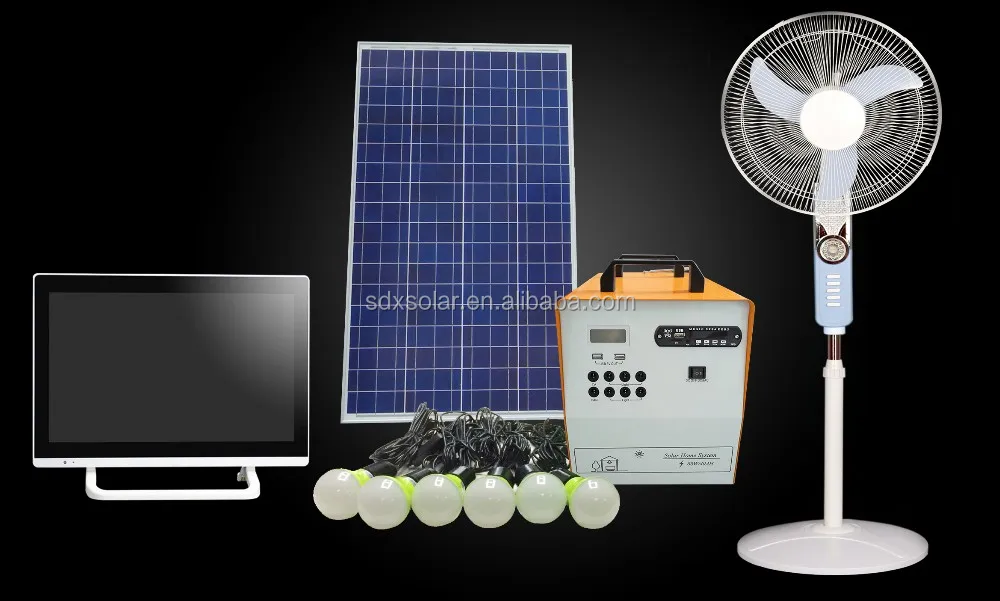

Output Interface: FAN*1pc TV*1pc DC12V LED LIGHT*6pcs USB 5V*2pcs
Indicating Method: LCD display
Display Content: battery capacity,working state (charging,discharging,Error reminded)
Protection: against overload, undervoltage, surge (Impulse), short circuit, overcharge and overdischarge, also support reverse protection.
Operating Temperature: -10℃-50℃
Storage Temperature: -20℃-70℃
Operating Humidity: 0-90%(no condensation)
Operating Altitude: <2000M

Packing and Shipping

solar panel and solar lighting kit are packed seperately


Our Company

Shenzhen SDX new energy technology CO.,LTD is a company integrated research,design and manufacturing of products like solar panel,Off-grid and On-grid power station,solar led street light,garden light,portable solar lighting system,solar camping lantern,solar key chain,,solar gifts and solar related application products."SDX" series products are self-innovated and manufactured.It is a hi-tech Enterprise which combines sales and services.The company now had developed good sales network,with products distributed to domestic provinces,remote areas,as well as European countries,Africa,Middle East,South Asia and South Africa.

Our Serivces


Our Other Solar Lighting Systems



SDX-S0504


SDX-S1007


SDX-S1509


SDX-S2012



SDX-S3017



SDX-S5024


Model
Solar Panel
Battery
Controller
Charging Time
Loads(LED Lights and Fan)
Working Time
SDX-S0504
18V/5W
12V4AH
12V/5A
11-12H
2W*2PCS LED
10-11H
SDX-S1007
18V/10W
12V7AH
12V/5A
10-11H
3W*2PCS LED
11-12H
SDX-S1509
18V/15W
12V9AH
12V/5A
8-9H
3W*2PCS LED
14-15H
SDX-S2012
18V/20W
12V12AH
12V/5A
8-9H
2W*2PCS LED
15W*1PC Fan
6-7H
SDX-S3017
18V/30W
12V17AH
12V/5A
8-9H
2W*2PCS LED
15W*1PC Fan
8-9H
SDX-S5024
18V/50W
12V24AH
12V/5A
7-8H
2W*2PCS LED
15W*1PC Fan
12-13H
If there is any need,please feel free to contact Lydia.
FAQ
1.Q: What is the payment terms,delivery port and MOQ of products?
We can provide EXW,FOB,CRF and CIF price depends on your requests. The delivery port can be Shenzhen or Hongkong. We accept T/T ,L/C, western union, paypal,etc.
2.Q: Can I get some samples?
Yes,of course. We are honored to offer you samples,usually samples can be ready in 3~7 days.
3.Q:How long will the system work?
It depends on the working devices.The battery of the kit is 9AH,it can support one 3W led light to work for more than 28 hours.
4.Q:How many sets can a 20ft or 40ft container contains?
A 20ft container can contains about 1200 sets and 40ft container contains about 2500 sets.
